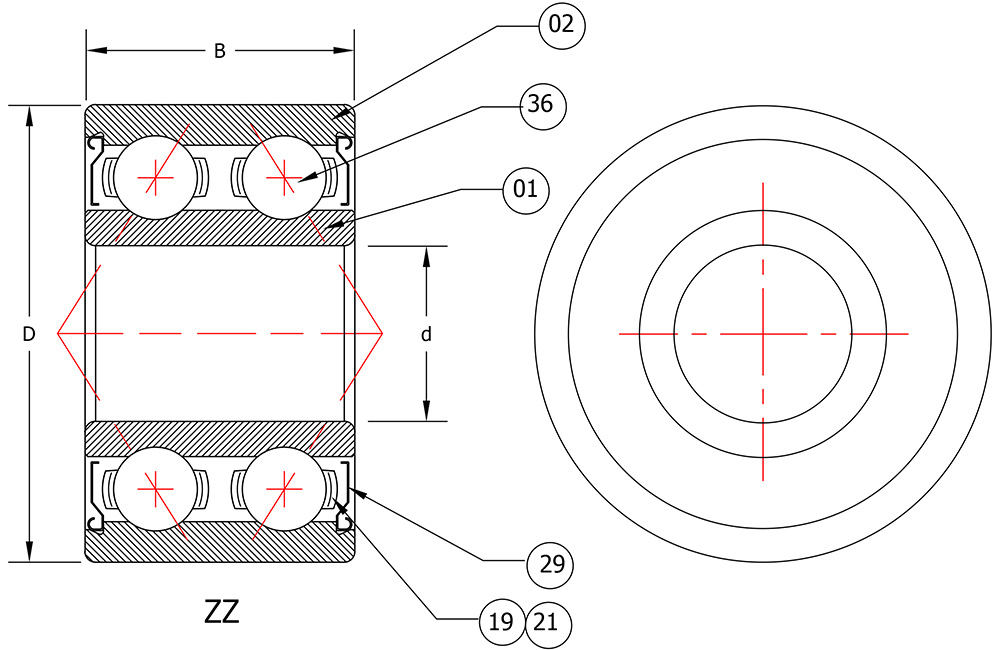

DIM.	INCH	INCH TOL.		mm	METRIC TOL.
		+	-		+	-
d	1.1811	0	0.0004	30	0	0.1
D	2.4409	0	0.0005	62	0	0.013
B	0.9370	0	0.0047	23.8	0	0.12
DATE	DRAWN BY	APPROVED BY		APPROVED BY
07/17/25	ST/CG	MM
This document must not be copied without written premission. The contents must not be issued to a third party, or be used for any unauthorized purposes.				Drawing No. ABT10289ZZ-007

NOTES
ABEC 1
Grease: Mobil Polyrex EM, 30-40% free volume fill
Basic Dynamic Load Rating Cr: 6400 Lbf (28.4686 kN)
Basic Static Load Rating Cor: 4600 Lbf (20.4618 kN)
Radial Internal Clearance - (C3): +0.012 to -0.028 mm (+0.0005 to -0.0011 inch)

ITEM	COMPONENTS	QTY	MATERIAL	HARDNESS	COMMENTS	345 Production Drive South Elgin, IL 60177-2636 www.tritanoem.com
01	Inner Ring	1	AISI 52100	60-64 HRc
02	Outer Ring	1	AISI 52100	60-64 HRc
36	Balls		AISI 52100	60-64 HRc
19	Retainer	2	High-Speed Polyamide
21	Rivets		AISI 1020
29	Shields	2	AISI 1020	25-30 HRc
						Part Number 5206 ZZ/C3 PRX
