DIM.	INCH	INCH TOL.		mm	METRIC TOL.
		+	-		+	-
d	0.3937	0	0.0003	10	0	0.008
D	1.3780	0	0.0004	35	0	0.01
B	0.7480	0	0.0047	19.0	0	0.12
DATE	DRAWN BY	APPROVED BY		APPROVED BY
05/05/25	ST/CG	MM
This document must not be copied without written premission. The contents must not be issued to a third party, or be used for any unauthorized purposes.				Drawing No. ABT102882RS-001

NOTES
ABEC 1
Grease: Mobil Polyrex EM, 30-40% free volume fill
Basic Dynamic Load Rating Cr: 1750 Lbf (7.7844 kN)
Basic Static Load Rating Cor: 1250 Lbf (5.5603 kN)
Radial Internal Clearance - (C3): +0.008 to -0.023 mm (+0.0003 to -0.0009 inch)

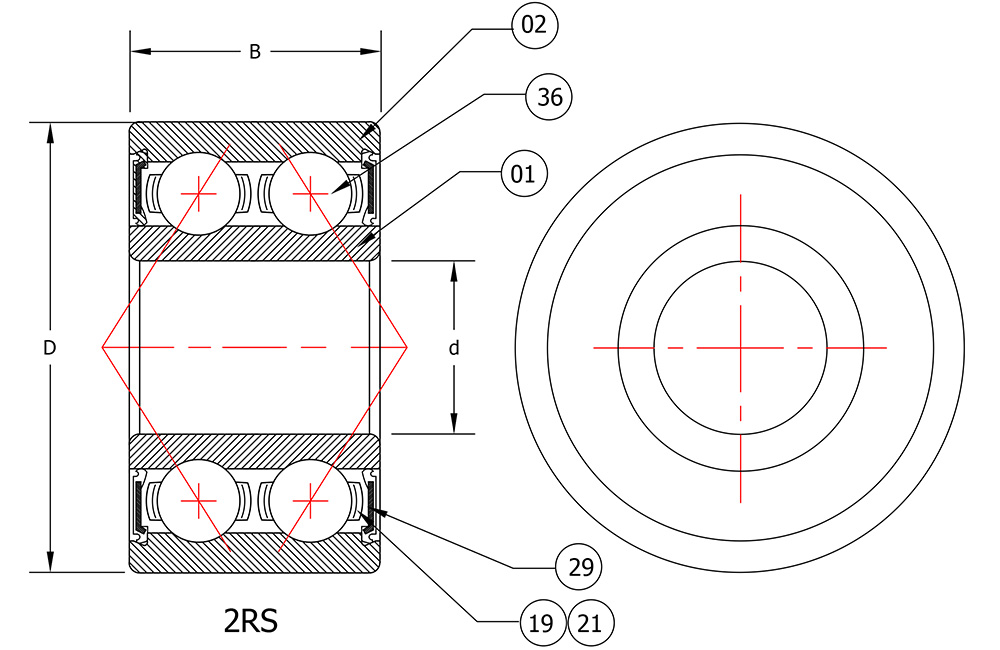

ITEM	COMPONENTS	QTY	MATERIAL	HARDNESS	COMMENTS	345 Production Drive South Elgin, IL 60177-2636 www.tritanoem.com
01	Inner Ring	1	AISI 52100	60-64 HRc
02	Outer Ring	1	AISI 52100	60-64 HRc
36	Balls		AISI 52100	60-64 HRc
19	Retainer	2	High-Speed Polyamide
21	Rivets		AISI 1020
29	Seals	2	NBR
						Part Number 5300 2RS/C3 PRX
