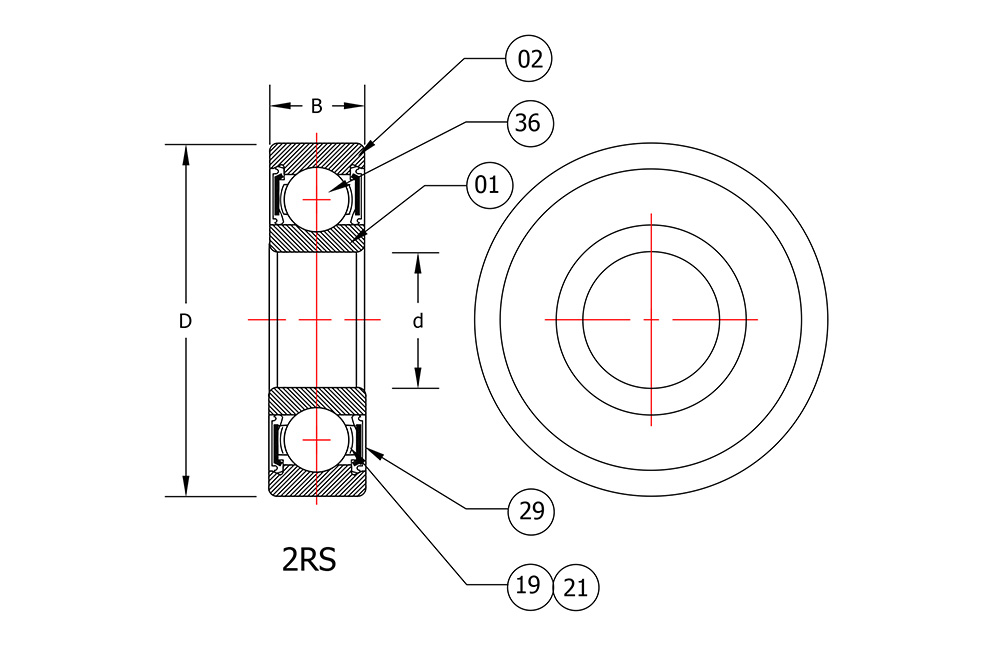

DIM.	INCH	INCH TOL.		mm	METRIC TOL.
		+	-		+	-
d	0.7874	0	0.0004	20	0	0.1
D	1.4567	0	0.0004	37	0	0.01
B	0.3543	0	0.0047	9	0	0.12
DATE	DRAWN BY	APPROVED BY		APPROVED BY
06/24/25	ST/CG	MM
This document must not be copied without written premission. The contents must not be issued to a third party, or be used for any unauthorized purposes.				Drawing No. ABT10286N2RS-005

NOTES
ABEC 1
Grease: Mobil Polyrex EM, 30-40% free volume fill
Basic Dynamic Load Rating Cr: 1440 Lbf (6.4054 kN)
Basic Static Load Rating Cor: 830 Lbf (3.6920 kN)
Radial Internal Clearance - (C0): +0.005 to -0.02 mm (+0.0002 to -0.0008 inch)

ITEM	COMPONENTS	QTY	MATERIAL	HARDNESS	COMMENTS	345 Production Drive South Elgin, IL 60177-2636 www.tritanoem.com
01	Inner Ring	1	AISI 52100	60-64 HRc
02	Outer Ring	1	AISI 52100	60-64 HRc
36	Balls		AISI 52100	60-64 HRc
19	Retainer	2	8F
21	Rivets		AISI 1020
29	Seals	2	NBR
						Part Number 61904 2RS PRX
