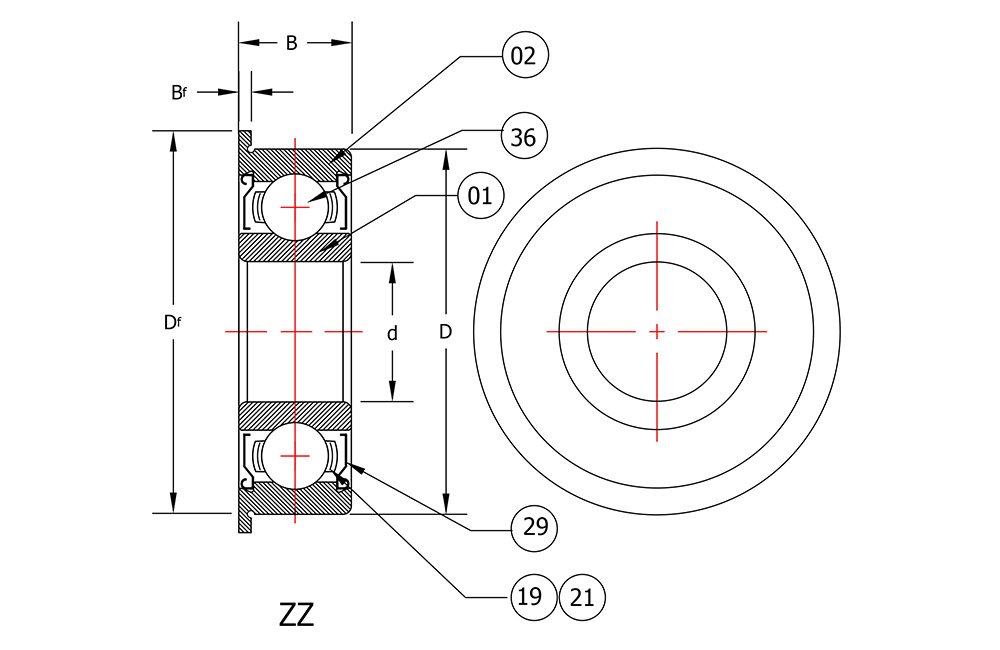

| DIM. | INCH | INCH TOL. | mm | METRIC TOL. | ||
|---|---|---|---|---|---|---|
| + | - | + | - | |||
| d | 0.2500 | 0 | 0.0003 | 6.3500 | 0 | 0.008 |
| D | 0.6250 | 0 | 0.0003 | 15.8750 | 0 | 0.008 |
| B | 0.1960 | 0 | 0.0047 | 4.9784 | 0 | 0.12 |
| DATE | DRAWN BY | APPROVED BY | APPROVED BY | |||
| 05/09/25 | ST/CG | MM | ||||
| This document must not be copied without written premission. The contents must not be issued to a third party, or be used for any unauthorized purposes. | Drawing No. ABT10459FZZ-003 |
|||||
| ITEM | COMPONENTS | QTY | MATERIAL | HARDNESS | COMMENTS |
345 Production DriveSouth Elgin, IL 60177-2636 www.tritanoem.com |
|---|---|---|---|---|---|---|
| 01 | Inner Ring | 1 | AISI 52100 | 60-64 HRc | ||
| 02 | Outer Ring | 1 | AISI 52100 | 60-64 HRc | ||
| 36 | Balls | AISI 52100 | 60-64 HRc | |||
| 19 | Retainer | 2 | 8F | |||
| 21 | Rivets | AISI 1020 | ||||
| 29 | Shields | 2 | AISI 1020 | 25-30 HRc | ||
| Part Number FR4 ZZ PRX |
||||||
