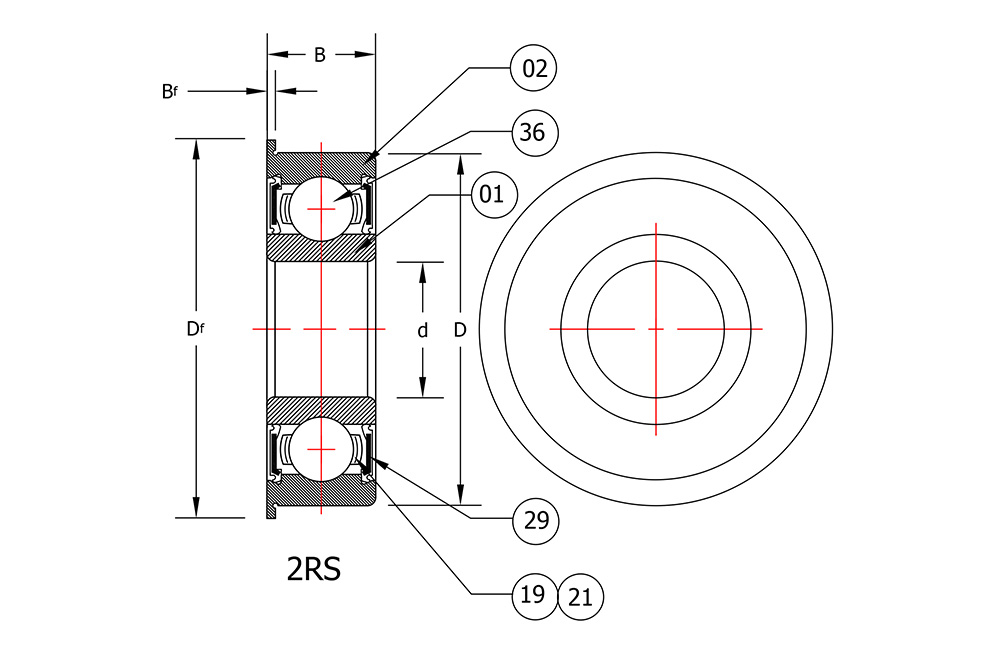

| DIM. | INCH | INCH TOL. | mm | METRIC TOL. | ||
|---|---|---|---|---|---|---|
| + | - | + | - | |||
| d | 0.5000 | 0 | 0.0003 | 12.7000 | 0 | 0.008 |
| D | 1.1250 | 0 | 0.0004 | 28.5751 | 0 | 0.009 |
| B | 0.3125 | 0 | 0.0047 | 7.9375 | 0 | 0.12 |
| DATE | DRAWN BY | APPROVED BY | APPROVED BY | |||
| 05/14/25 | ST/CG | MM | ||||
| This document must not be copied without written premission. The contents must not be issued to a third party, or be used for any unauthorized purposes. | Drawing No. ABT10459F2RS-005 |
|||||
| ITEM | COMPONENTS | QTY | MATERIAL | HARDNESS | COMMENTS |
345 Production DriveSouth Elgin, IL 60177-2636 www.tritanoem.com |
|---|---|---|---|---|---|---|
| 01 | Inner Ring | 1 | 440C Stainless | 58-60 HRc | ||
| 02 | Outer Ring | 1 | 440C Stainless | 58-60 HRc | ||
| 36 | Balls | 440C Stainless | 58-60 HRc | |||
| 19 | Retainer | 2 | 304 Stainless | |||
| 21 | Rivets | Stainless Steel 300 Series | ||||
| 29 | Seals | 2 | NBR | |||
| Part Number SSFR8 2RS FM222 |
||||||
