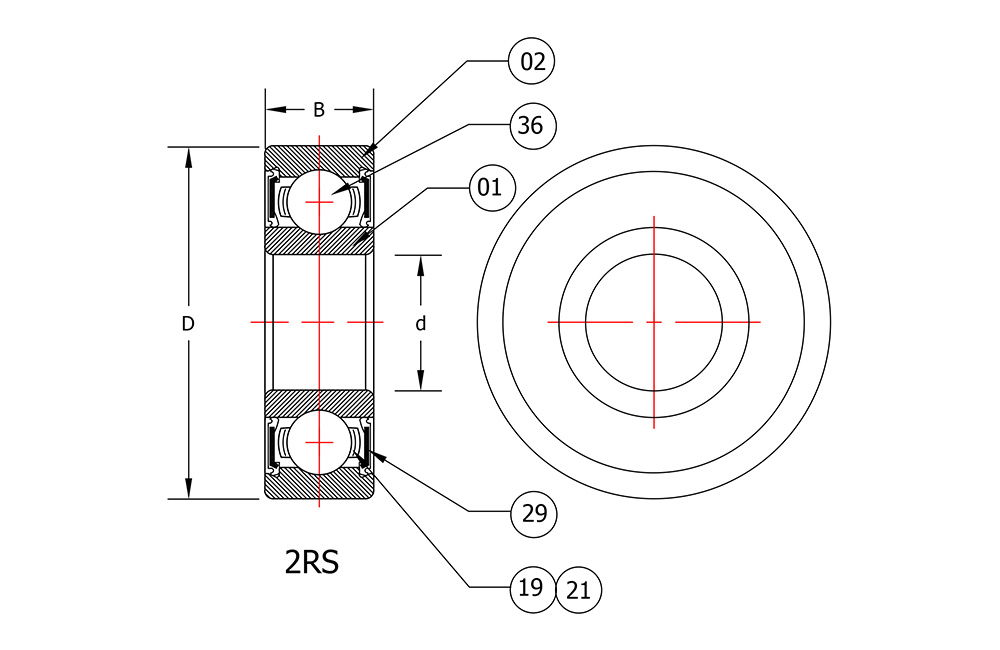

DIM.	INCH	INCH TOL.		mm	METRIC TOL.
		+	-		+	-
d	0.625	0	0.0003	15.8750	0	0.008
D	1.375	0	0.0004	34.9251	0	0.01
B	0.2812	0	0.0047	7.1425	0	0.12
DATE	DRAWN BY	APPROVED BY		APPROVED BY
08/22/25	ST/CG	MM
This document must not be copied without written premission. The contents must not be issued to a third party, or be used for any unauthorized purposes.				Drawing No. ABT102862RS-008

NOTES
ABEC 1
Grease: FM222
Basic Dynamic Load Rating Cr: 1078 Lbf (4.7952 kN)
Basic Static Load Rating Cor: 705 Lbf (3.1360 kN)
Radial Internal Clearance - (C0): +0.00012 to -0.00071 inch (+0.003 to -0.018 mm)

ITEM	COMPONENTS	QTY	MATERIAL	HARDNESS	COMMENTS	345 Production Drive South Elgin, IL 60177-2636 www.tritanoem.com
01	Inner Ring	1	440C Stainless	58-60 HRc
02	Outer Ring	1	440C Stainless	58-60 HRc
36	Balls		440C Stainless	58-60 HRc
19	Retainer	2	304 Stainless
21	Rivets		Stainless Steel 300 Series
29	Seals	2	NBR
						Part Number SSR10 2RS FM222
