DIM.	INCH	INCH TOL.		mm	METRIC TOL.
		+	-		+	-
d	0.5000	0	0.0003	12.7000	0	0.008
D	0.7500	0	0.0004	19.0500	0	0.009
B	0.1562	0	0.0047	3.9675	0	0.12
DATE	DRAWN BY	APPROVED BY		APPROVED BY
05/09/25	ST/CG	MM
This document must not be copied without written premission. The contents must not be issued to a third party, or be used for any unauthorized purposes.				Drawing No. ABT10287ZZ-012

NOTES
ABEC 1
Grease: SRL
Basic Dynamic Load Rating Cr: 111 Lbf (0.4938 kN)
Basic Static Load Rating Cor: 71 Lbf (0.3158 kN)
Radial Internal Clearance - (C0): +0.0001 to -0.0007 inch (+0.003 to -0.018 mm)

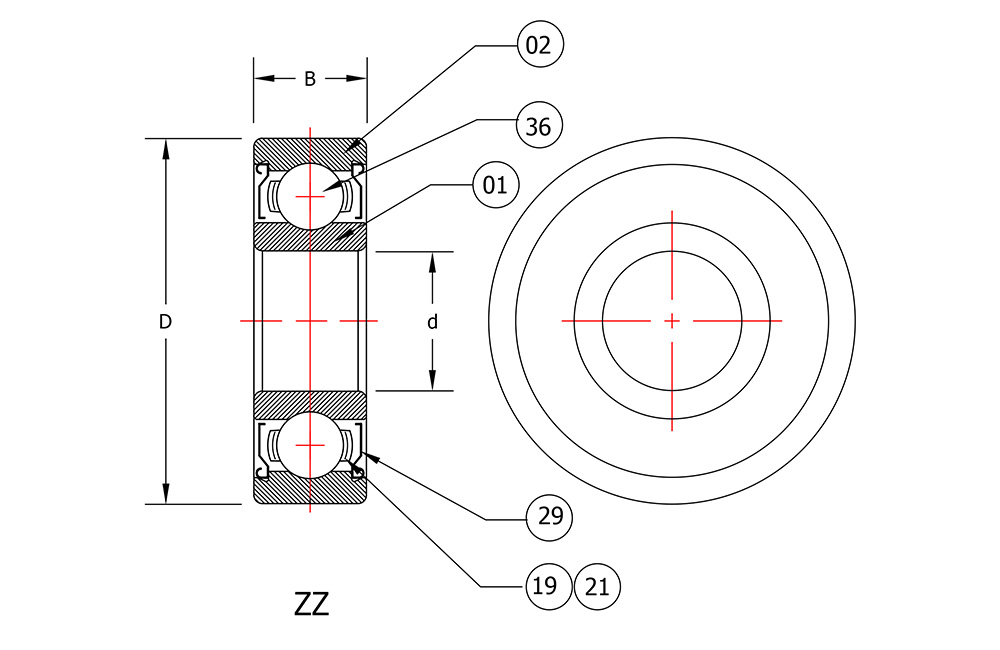

ITEM	COMPONENTS	QTY	MATERIAL	HARDNESS	COMMENTS	345 Production Drive South Elgin, IL 60177-2636 www.tritanoem.com
01	Inner Ring	1	440C Stainless	58-60 HRc
02	Outer Ring	1	440C Stainless	58-60 HRc
36	Balls		440C Stainless	58-60 HRc
19	Retainer	2	304 Stainless
21	Rivets		Stainless Steel 300 Series
29	Shield	2	304 Stainless
						Part Number SSRI1212 ZZ SRL
