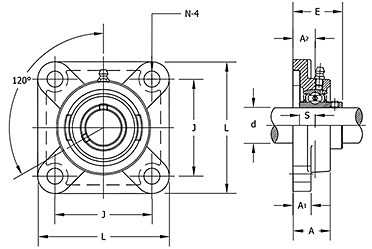

UCFX Series - Medium Duty, Set Screw Locking Type
- Medium duty square flange unit, set screw locking
- Cast-iron housing
- Wide inner ring bearing
- Dual heavy-duty slinger type contact seals
- Anti-Rotation device
- Triple lip seals (R3 suffix) optional
| Specifications: | |
|---|---|
| Unit No. | UCFX06-19 |
| Bearing Type | Medium duty square flange unit, set screw locking |
| Material | Cast Iron Housing, AISI 52100 steel insert |
| Shaft Diameter | 1.1875 in |
| Insert No. | UCX06-19 |
| Housing No. | F207 |
| Basic Dynamic Load Rating (Cr) | 5777.59 lbs |
| Basic Static Load Rating (Cor) | 3439.58 lbs |
| Weight | 3.75 lbs |
