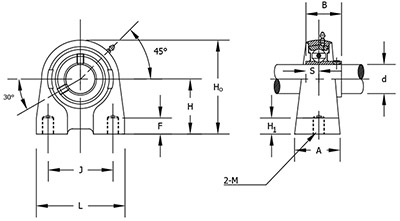

UCPA A Series - Standard Duty Tapped Base Unit For Limited Space Applications
- Compact unit for limited space applications
- Inch dimension threaded bolts in base mount unit to shaft
- One-piece cast iron housing, solid base
- Wide inner ring bearing
- Dual heavy-duty contact-type seals
- Anti-Rotation device
- Grease fitting for adding lubricant
| Specifications: | |
|---|---|
| Unit No. | UCPA202-10A |
| Bearing Type | Tapped Base Pillow Block - Standard Duty, Set Screw Locking |
| Material | Cast Iron Housing, AISI 52100 steel insert |
| Shaft Diameter | 0.6250 in |
| Insert No. | UC202-10 |
| Housing No. | PA204A |
| Basic Dynamic Load Rating (Cr) | 2877.55 lbs |
| Basic Static Load Rating (Cor) | 1494.98 lbs |
| Weight | 1.39 lbs |
